DevOps - Architecture

Quiz

In todays fast-moving world of software development, we see that combining development and operations through DevOps architecture is very important for organizations. This method helps us work together better, makes processes simpler, and lets us deliver high-quality software quickly.

In this chapter, we will look at the basic parts of DevOps architecture. We will discuss its main principles, key parts, and the tools that help us use it. We will talk about how DevOps architecture allows practices like continuous integration and continuous delivery (CI/CD), infrastructure as code (IaC), and monitoring. All these help us create a more flexible and quick development environment.

What is DevOps Architecture?

DevOps architecture is a framework that mixes development and operations practices. It helps us create a smoother, more cooperative, and efficient way to deliver software. We focus on breaking down barriers between teams. We integrate different steps of the software development lifecycle (SDLC). This helps improve communication, automation, and constant improvement.

By using ideas from Agile and Lean methods, the DevOps architecture lets us react quickly to what the market needs. We can deliver new features faster and keep our software quality high.

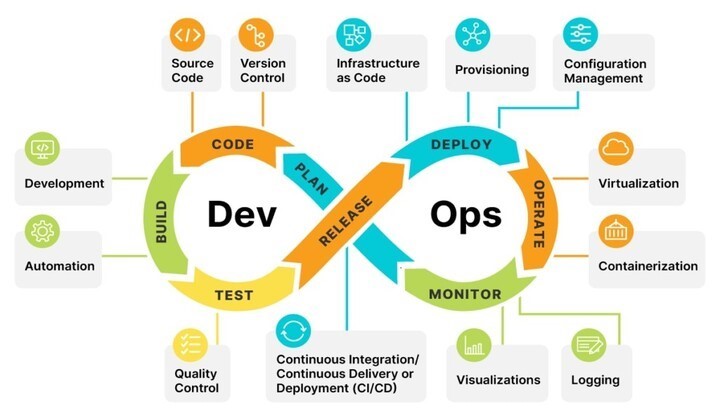

Key Components of DevOps Architecture

Following are the key components of DevOps Architecture −

Continuous Integration (CI) − CI is a practice where we automatically combine code changes from many contributors into a shared place several times a day. This process helps us find and fix problems early. It makes our software better.
Continuous Delivery (CD) − CD builds on CI. It makes sure that the combined code is always ready to be used. This way, we can release new features and fixes quickly and reliably. It helps us get fast feedback and improve.
Infrastructure as Code (IaC) − IaC is about managing and setting up our infrastructure through code. We dont do it by hand. This way, we can set up our infrastructure automatically, consistently, and repeatedly. It reduces mistakes and speeds up the process.
Microservices Architecture − This design means breaking our applications into smaller services. These services are not tightly connected. We can develop, deploy, and scale them on their own. Microservices give us more flexibility. They let us work on different parts without stopping the whole system.
Automation Tools − Automation is very important in DevOps architecture. We use tools like Jenkins, Ansible, and Terraform to automate tasks. These include testing, deployment, and managing setups. This lets our teams focus on more important work.
Monitoring and Logging − We need to monitor our applications and infrastructure all the time. This is key to keeping our performance and reliability. Monitoring tools gather data and metrics. Logging tools collect detailed event information. This helps us find and fix issues quickly.
Collaboration and Communication − Good teamwork between development and operations is key for DevOps architecture to work well. We use tools like Slack, Jira, and Confluence to help us communicate and manage projects. This way, everyone stays aligned and informed during the development process.
Security (DevSecOps) − We add security into the DevOps process through DevSecOps. This makes sure security steps are part of every stage of development. This way, we can find problems early and stay compliant. We do this without slowing down our delivery.

Core Principles of DevOps Architecture

The core principles of DevOps architecture are very important for creating a team-focused and effective software development environment. These principles help to enhance teamwork and make processes easier. They also support continuous delivery and good monitoring with feedback.

Following these principles allows organizations to make their development workflows smoother. They can also improve software quality and respond faster to market demands. Here is a summary of the key principles of DevOps architecture −

Principle	Description
Collaboration	Encourages open talks and teamwork. Development, operations, and stakeholders work together. This helps to share responsibility for quality and delivery.
Automation	Makes repeated tasks easier. Automation of code integration, testing, and deployment reduces mistakes. This increases overall efficiency.
CI / CD	Enables fast and safe software delivery. This is done by merging code changes into a central place often and automatically putting tested code into production.
Monitoring and Feedback Loops	Involves continuous monitoring of applications and infrastructure. This gives real-time information. Learning from failures and successes helps to improve all the time.

DevOps Example Step By Step

To show how a typical DevOps workflow works, let's look at an example of an e-commerce app. This app wants to add a new feature. It wants to create a recommendation system for products. Here is how the DevOps process happens:

Step 1: Planning and Requirements Gathering

First, the development team works with stakeholders. They gather the needs for the recommendation system. They talk about what users expect, technical needs, and goals. This step is important to set up the next development work.

Step 2: Designing the Architecture

After gathering the needs, the team designs the architecture for the new feature. They choose a microservices architecture. This way, the recommendation system can run on its own and not depend on the main app. The design also includes how to store data and connect with current services.

Step 3: Development

Next, developers start coding the recommendation system. They break down tasks and assign them to different team members. They use version control systems like Git to manage code changes together. Each developer works on separate branches. This allows them to work at the same time without issues.

Step 4: Continuous Integration (CI)

When developers commit their code changes to the repository, a CI tool like Jenkins starts builds automatically. The CI process runs tests to check that the new code works well with the old code. If any tests fail, developers get alerts right away to fix the problems.

Step 5: Continuous Delivery (CD)

After the code passes all tests, it goes to the Continuous Delivery pipeline. This pipeline automates the deployment to staging environments for more testing. In this environment, more automated tests run. These include integration and performance tests to see how the feature works in different situations.

Step 6: Deployment

Once testing is successful in the staging environment, the recommendation system is ready to go live. Using tools like Ansible or Terraform, the team deploys the new feature to production. They watch the deployment closely to make sure it does not disturb existing services.

Step 7: Monitoring and Feedback

After the recommendation system is live, monitoring tools track its performance and user engagement. They collect metrics like response time, system load, and user interactions. Feedback from users helps check how effective the feature is and find ways to improve it.

Step 8: Continuous Improvement

Using the metrics and user feedback, the development team finds ways to make things better. They might see that the recommendation algorithms need improving or that new features could help user experience. This starts new planning sessions, and the cycle of development begins again. This keeps the app growing to meet user needs.

DevOps Toolchain

In our DevOps toolchain, we have many tools that help in different stages of software development. These tools help us work together, automate tasks, and be more efficient. This allows us to deliver good software quickly and reliably. When we use these tools together, we create a smooth workflow.

The following table provides a summary of the different types of tools we commonly use in DevOps −

Tool Category	Tools	Description
Planning and Collaboration Tools	Jira	This tool helps us plan, track, and manage agile software projects. It has features for task assignments and tracking progress.
	Trello	Trello is a visual tool. It uses boards, lists, and cards to help us organize tasks and projects. It makes it easy for teams to manage their work and priorities.
	Asana	Asana helps us create, assign, and track tasks. It makes communication better and shows how projects are going.
Version Control	Git	Git tracks code changes. It allows many developers to work together on projects while keeping version history.
	Bitbucket	Bitbucket is a web-based repository for version control. It supports Git and Mercurial. It has features for pull requests, code reviews, and integration with CI/CD tools.
	GitHub	GitHub is a platform for version control using Git. It offers collaborative features like pull requests and issue tracking. Many use it for open-source projects.
CI / CD Tools	Jenkins	Jenkins is an open-source server. It helps us automate building, testing, and deploying applications. We can customize it with pipelines and plugins.
	Travis CI	Travis CI is a cloud-based service that builds and tests code changes. It integrates directly with GitHub for easy deployment and teamwork.
	CircleCI	CircleCI is a platform that automates software testing and deployment. It gives quick feedback on code changes and supports Docker and Kubernetes.
Configuration Management	Puppet	Puppet is an open-source tool. It helps manage and configure servers and applications. It keeps things consistent across environments.
	Chef	Chef is a configuration management tool. It uses code to automate setting up and managing infrastructure. This helps us repeat and scale deployments easily.
	Ansible	Ansible is an open-source tool that makes configuration management easy. It uses a simple YAML language to help us update applications quickly.
Monitoring and Logging	Prometheus	Prometheus is an open-source monitoring tool. It collects metrics and provides powerful ways to query data. It is built for reliability and scalability.
	ELK Stack	The ELK Stack combines Elasticsearch, Logstash, and Kibana. It helps us with centralized logging and data analysis. We can visualize application health with it.
	Grafana	Grafana is an open-source platform for analytics and monitoring. It connects with different data sources. This allows us to create dashboards to see application metrics.

Conclusion

In this chapter, we looked at its basic ideas, key parts, and how it has changed over time. We started by defining DevOps and why it is important today. We talked about core ideas like working together, automating tasks, and continuous integration and continuous deployment (CI/CD). These ideas help us use DevOps well. We also checked out the tools in the DevOps toolchain.
